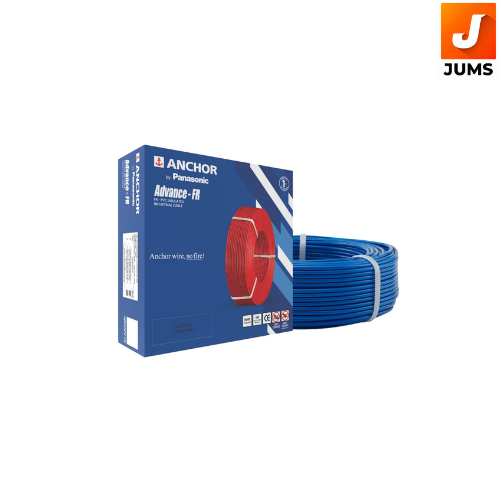

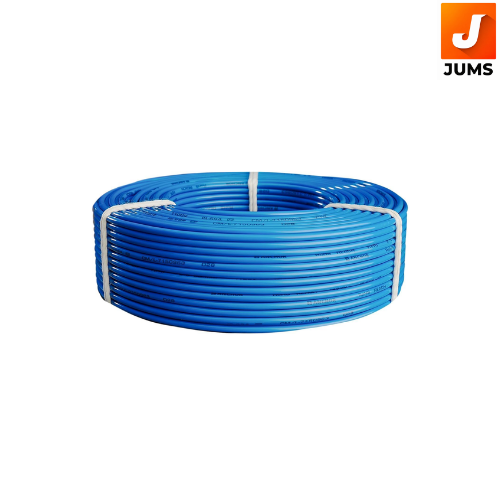

Anchor Advance FR 2.5 sq mm Blue 90 m FR PVC Insulated Wire

(0) Review

₹6,944

Brand Anchor ISIN EWSXQLJZUY Offer ID 1000350437 Brand Collection Name Advance FR Brand Model Number 27415 Size 2.5 sq mm Brand Colour Blue Length 90 m Voltage 1100 V Rated Current 22 A Conductor Type Stranded Conductor Material Copper Insulated Material FR PVC Core 1 Core Certification IS: 694 Usage Residential Pack Of 1 Warranty Not Applicable Country of Origin India

Available Options Color

Category :Electricals

Sub Category :Wires & Cables

Stock : 9

Anchor introduces Advance FR (Flame Retardant) wire confirming to IS 694, 1100V (1.1 KV) with specially formulated proprietory PVC compound. Key Features: Exceptional flame retarding properties to the insulation Higher oxygen index (LOI) of 30% and temperature index of 3000C against specified category C1 values of 29% and 2500C respectively

Flame Retardant (FR) PVC Insulation – Specially formulated PVC insulation helps resist fire and prevents flame propagation, improving electrical safety.
High Oxygen Index (~30%) – Higher oxygen index improves resistance to ignition compared to standard PVC wires.
High Temperature Index (~300 °C) – Designed to withstand higher temperatures during electrical operation.
High Insulation Resistance (HIR) – Minimizes leakage current and increases electrical safety.
Suitable for Domestic & Commercial Wiring – Ideal for houses, offices, and light electrical load circuits up to 1100 V.

Brand:	Anchor
Wire Type	Advance FR (Flame Retardant) Building Wire
Nominal Cross-Section Area:	2.5 sq mm
Length:	90 meters
Conductor Material:	: 100% Electrolytic Grade Copper
Voltage Rating	1100 V (1.1 kV)
Current Rating:	: Approx. 22 A
Product Code:	: 27415BU
