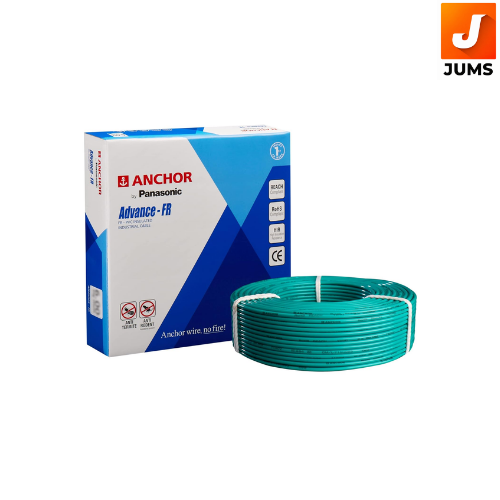

Anchor Advance FR 4 sq mm Green 180 m FR PVC Insulated Wire

(0) Review

₹13,941

Brand Anchor ISIN ECLVGOUY89 Offer ID 1006138578 Brand Collection Name Advance FR Brand Model Number T-27426GN Size 4 sq mm Brand Colour Green Length 180 m Voltage 1100 V Rated Current 29 A Conductor Type Stranded Conductor Material Copper Insulated Material FR PVC Core 1 Core Certification IS: 694 Usage Residential Pack Of 1 Warranty Not Applicable Country of Origin India

Available Options Color

Category :Electricals

Sub Category :Wires & Cables

Stock : 10

Anchor introduces Advance FR (Flame Retardant) low tension wire confirming to IS 694, 1100V(1.1 KV) with specially formulated proprietary PVC compound giving exceptional flame retarding properties to the insulation. Key Features: Higher oxygen index (LOI) of 30 percenatge Temperature index of 3000C against specified category C1 values of 29% percentage and 2500C respectively

Flame Retardant (FR) Insulation – Special FR-grade PVC insulation helps prevent the spread of fire, improving electrical safety in homes and buildings.
100% Electrolytic Copper Conductor – High-purity copper ensures better conductivity and efficient power transmission.
High Oxygen Index (≈30%) – Provides superior flame-resistant properties compared to standard PVC wires.
Temperature Index Around 300°C – Designed to withstand higher temperatures for safer operation.
High Insulation Resistance (HIR) – Reduces leakage current and improves electrical safety

Brand:	Anchor
Wire Type	Advance FR (Flame Retardant) building wire
Nominal Cross-Sectional Area	4 sq mm
Length:	180 meters coil
Conductor Material:	100% Electrolytic Grade Copper
Voltage Rating:	1100 V (1.1 kV)
Current Rating:	29 A
Insulation Material:	FR-grade PVC insulation
Overall Diameter:	Approx. 4.1 mm
