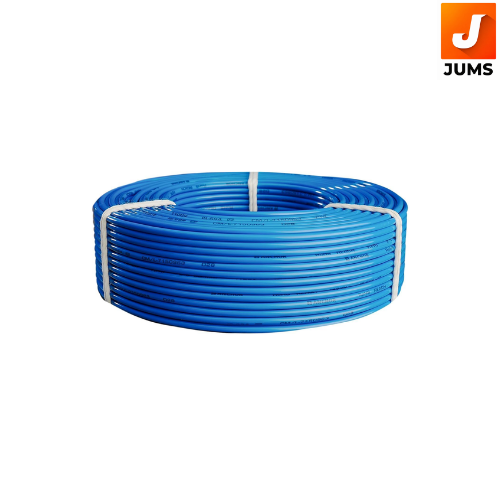

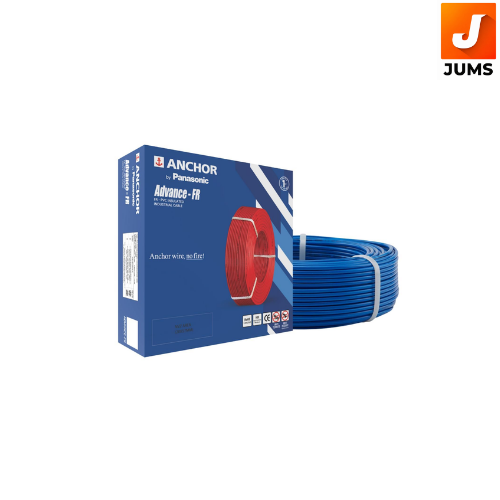

Anchor Advance FR 6 sq mm Blue 90 m FR PVC Insulated Wire

(0) Review

₹15,309

Brand Anchor ISIN E13LEOBGS7 Offer ID 1000350794 Brand Collection Name Advance FR Brand Model Number 27437 Size 6 sq mm Brand Colour Blue Length 90 m Voltage 1100 V Rated Current 37 A Conductor Type Stranded Conductor Material Copper Insulated Material FR PVC Core 1 Core Certification IS: 694 Usage Residential Pack Of 1 Warranty Not Applicable Country of Origin India

Available Options Color

Category :Electricals

Sub Category :Wires & Cables

Stock : 10

Anchor introduces Advance FR (Flame Retardant) wire confirming to IS 694, 1100V (1.1 KV) with specially formulated proprietory PVC compound. Key Features: Exceptional flame retarding properties to the insulation Higher oxygen index (LOI) of 30% and temperature index of 3000C against specified category C1 values of 29% and 2500C respectively

Flame Retardant (FR) PVC Insulation – Special FR-grade insulation helps prevent the spread of fire and improves electrical safety.
High Oxygen Index (~30%) – Provides better resistance to fire compared with ordinary PVC wires
High Temperature Index (~300°C) – Designed to withstand high temperatures for safer performance.
Anti-Rodent & Anti-Termite Properties – Insulation compound helps protect the wire from pests.
Suitable for Residential & Commercial Wiring – Ideal for homes, buildings, and electrical installations up to 1100 V.

Brand:	Anchor
Wire Type	Advance FR (Flame Retardant) building wire
Nominal Cross-Sectional Area	6 sq mm
Length:	90 meters
Conductor Material:	Electrolytic grade copper
Voltage Rating	1100 V (1.1 kV)
Current Rating:	Approx. 37 A
Overall Diameter:	Approx. 4.7 mm
