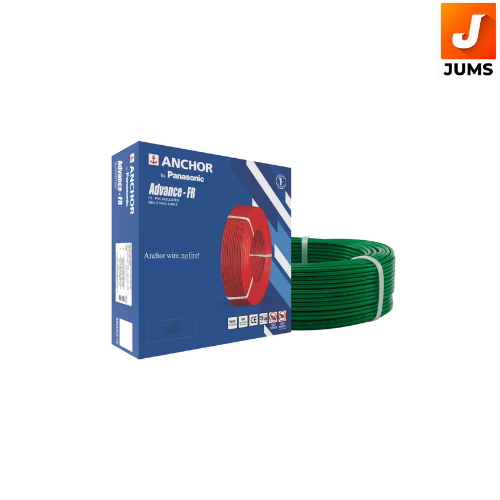

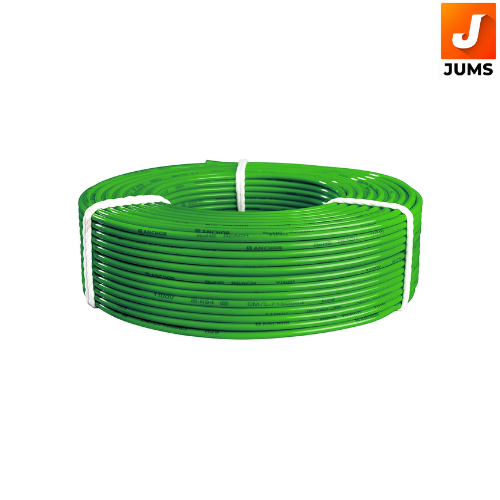

Anchor Advance FR 1.5 sq mm Green 90 m FR PVC Insulated Wire

(0) Review

₹3,171

Brand Anchor ISIN EVCN5VSIMA Offer ID 1000350194 Brand Collection Name Advance FR Brand Model Number 27404 Size 1.5 sq mm Brand Colour Green Length 90 m Voltage 1100 V Rated Current 16 A Conductor Type Stranded Conductor Material Copper Insulated Material FR PVC Core 1 Core Certification IS: 694 Usage Residential Pack Of 1 Warranty Not Applicable Country of Origin India

Available Options Color

Category :Electricals

Sub Category :Wires & Cables

Stock : 10

Anchor introduces Advance FR (Flame Retardant) wire confirming to IS 694, 1100V (1.1 KV) with specially formulated proprietory PVC compound. Key Features: Exceptional flame retarding properties to the insulation Higher oxygen index (LOI) of 30% and temperature index of 3000C against specified category C1 values of 29% and 2500C respectively

Flame Retardant (FR) PVC Insulation – Special FR-grade PVC insulation helps prevent the spread of fire and improves safety in electrical wiring.
101% Conductivity – Provides better current flow and reduces heat generation during operation.
High Oxygen Index (~30%) – Offers superior flame resistance compared to normal PVC wires.
High Insulation Resistance (HIR) – Reduces leakage current and increases electrical safety.
ISI Standard (IS 694:2010) Certified – Manufactured according to Indian electrical safety standards.

Brand:	Anchor
Wire Type	Advance FR (Flame Retardant) Building Wire
Nominal Cross-Section Area:	1.5 sq mm
Length:	90 meters coil
Conductor Material:	100% Electrolytic Grade Copper
Number of Core:	Single Core
Insulation Material:	FR PVC (Flame Retardant Polyvinyl Chloride)
